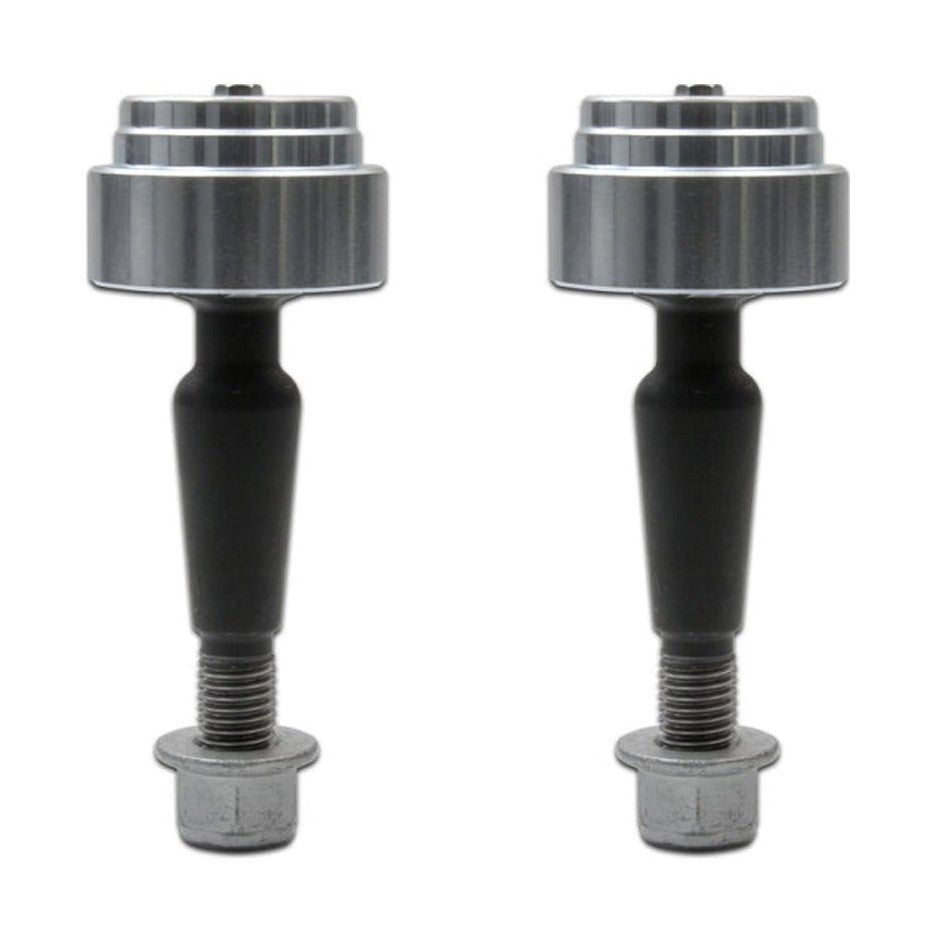

ICON 2004+ Ford F-150/2010+ Ford Raptor Non-ICON Upper Control Arm 1-Inch Retrofit Delta Joint Kit

This listing covers the exact ICON control arms configuration identified as ICON + Ford F-150/+ Ford Raptor Non-ICON Upper Control Arm 1-Inch Retrofit Delta Joint Kit.

Catalog fitment covers the listed 2004-2020 Ford F-150 applications. Exact year and submodel combinations appear in the fitment table below; compatibility must not be inferred for every trim across the full range.

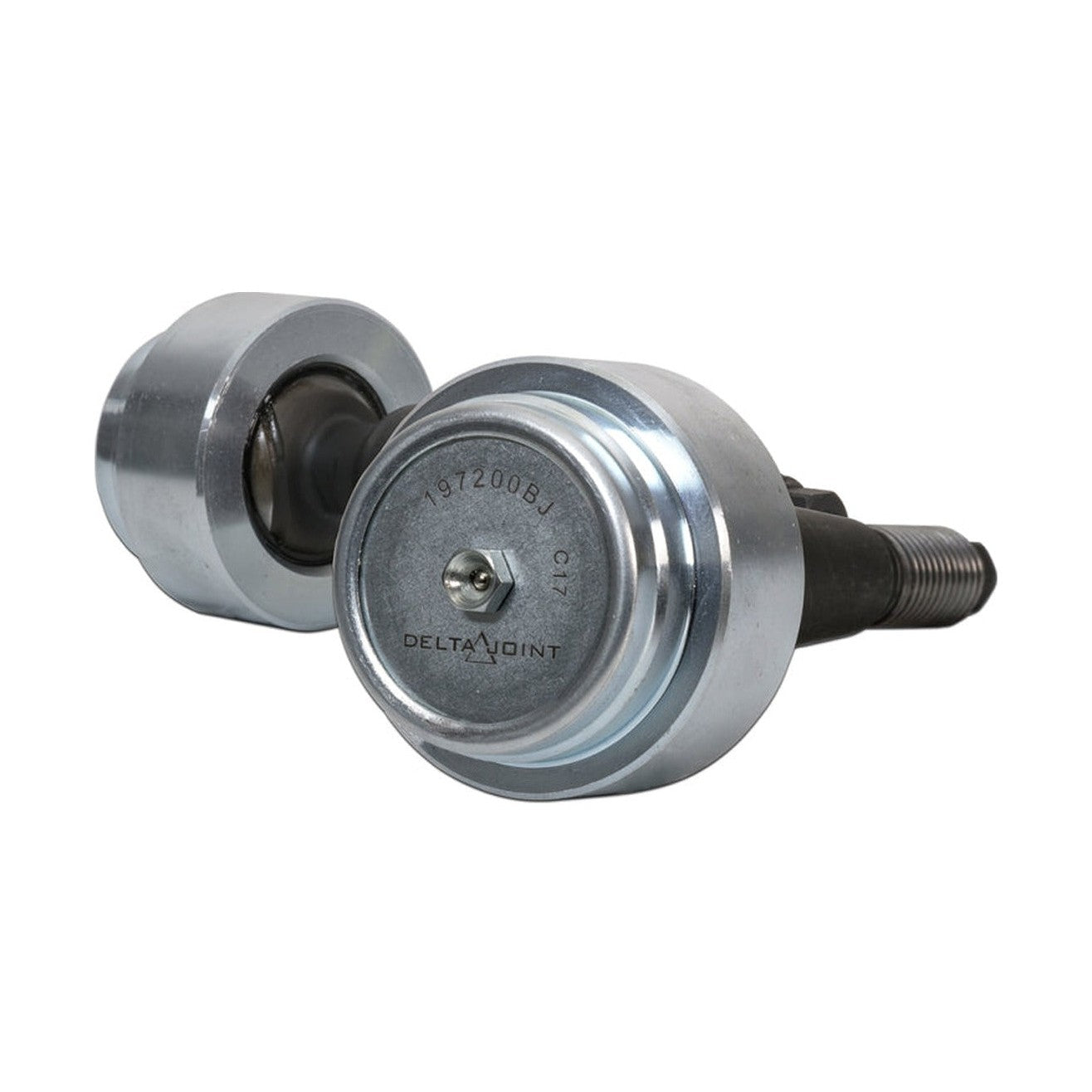

ICON’s Delta Joint is a heavy-duty high-angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint’s zinc plated housing provides the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while also allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to Non-ICON upper control arms with features that make it more robust than a uniball, and capable of greater angularity than a typical ball joint.

Use manufacturer part number 614564 to identify this exact ICON configuration. Match the full part number, vehicle application, position, dimensions, material, finish, and included components before ordering.
