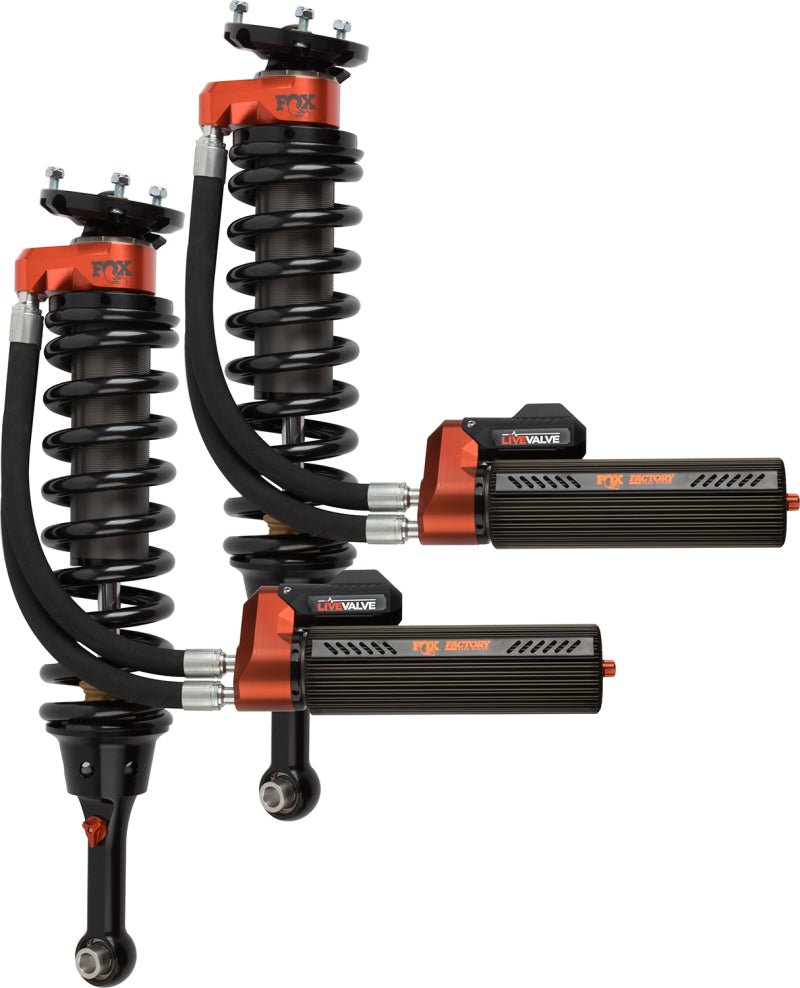

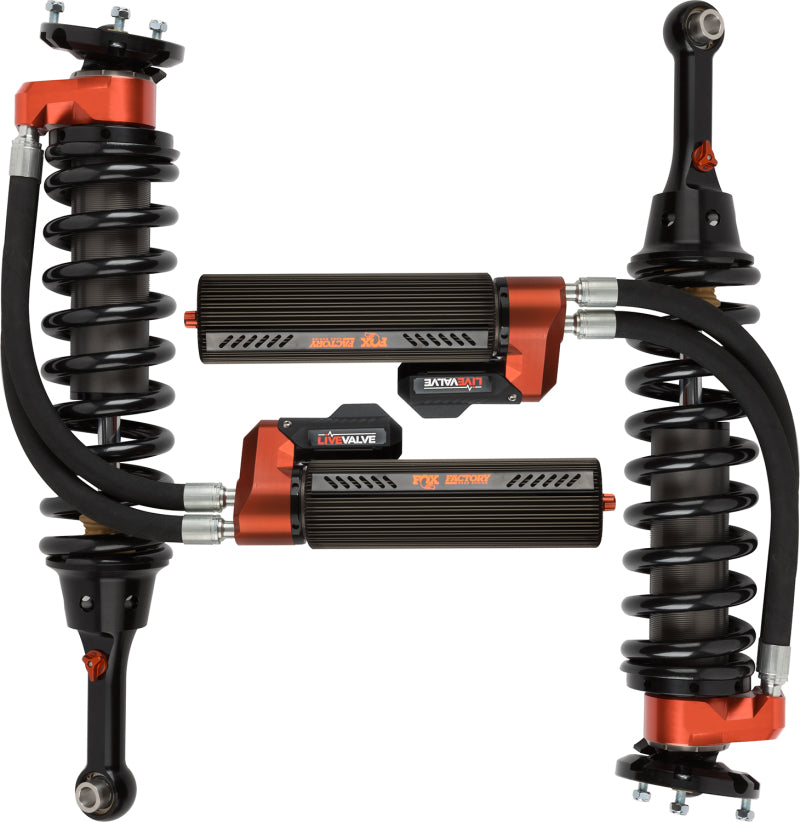

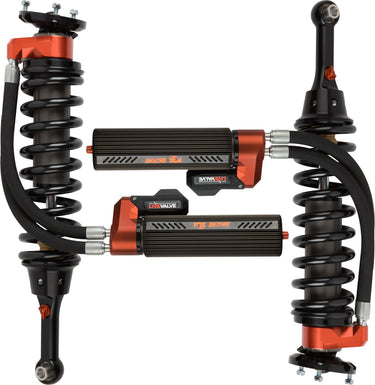

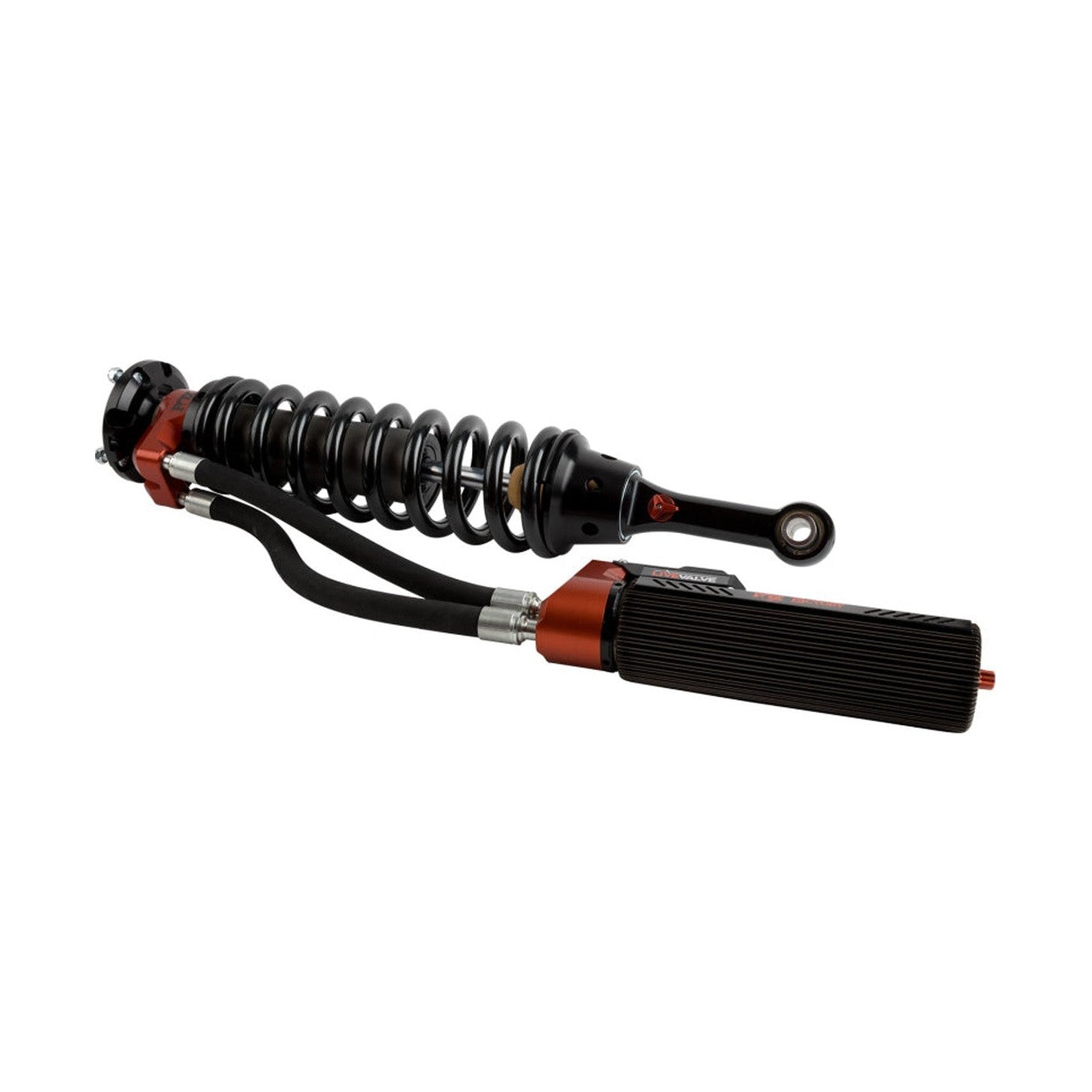

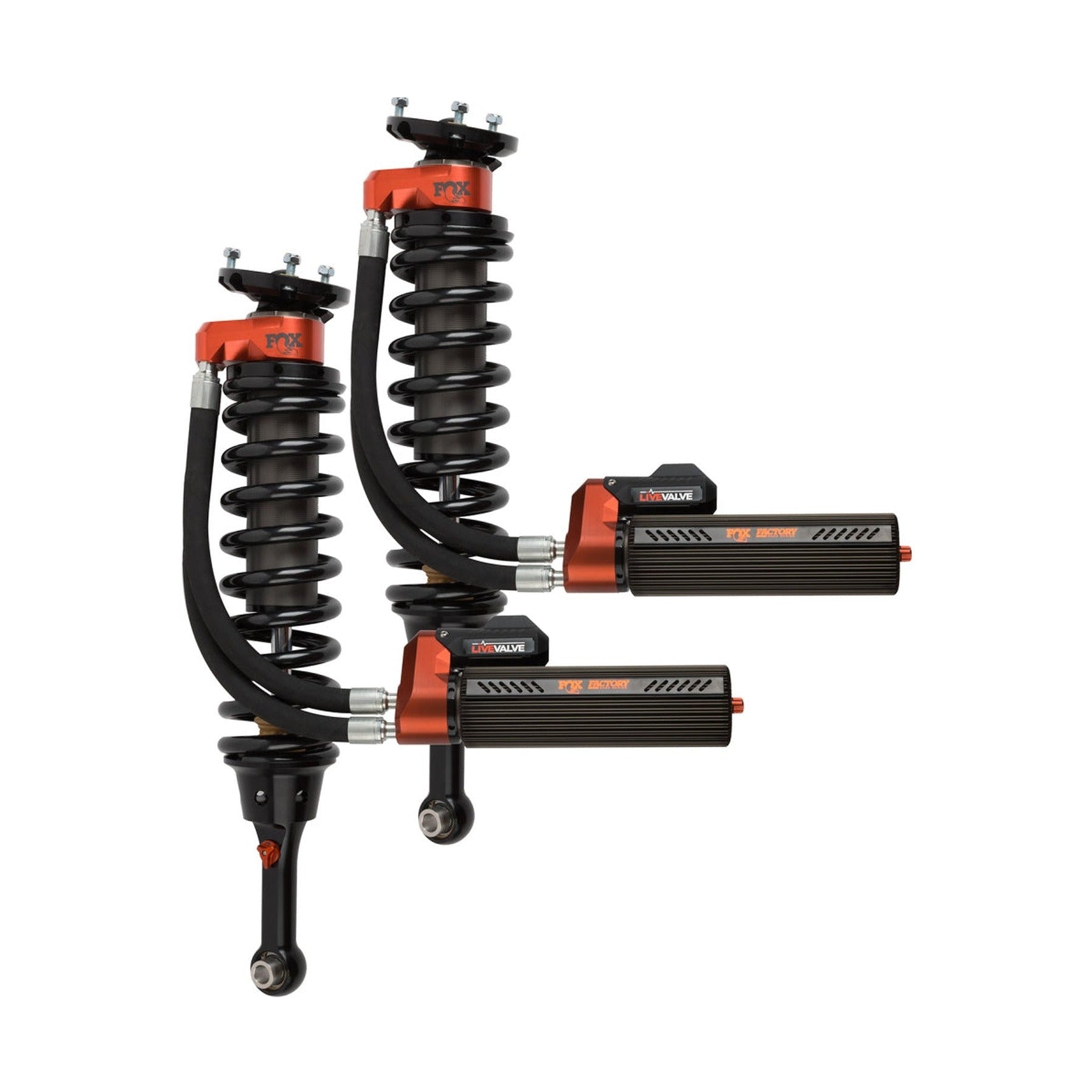

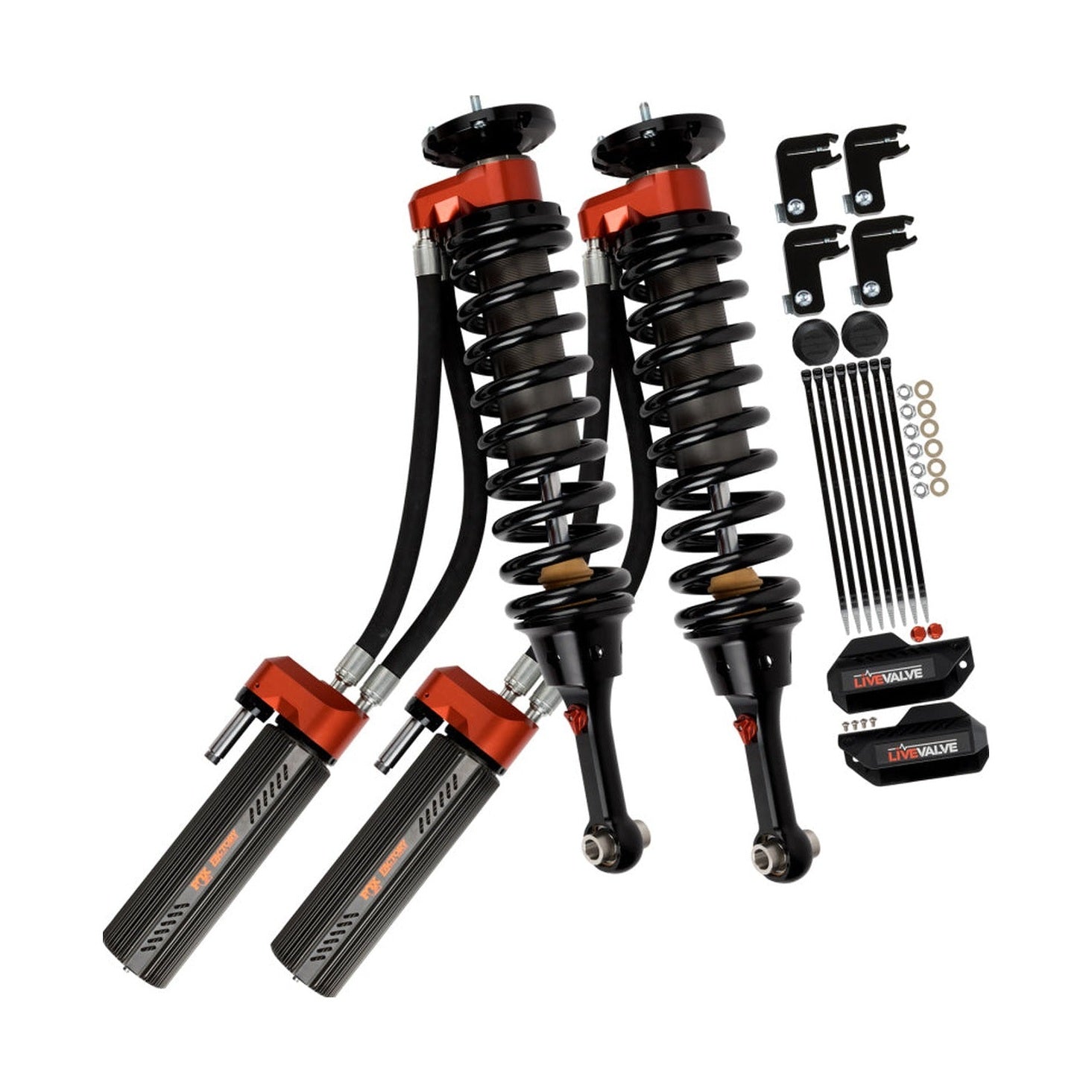

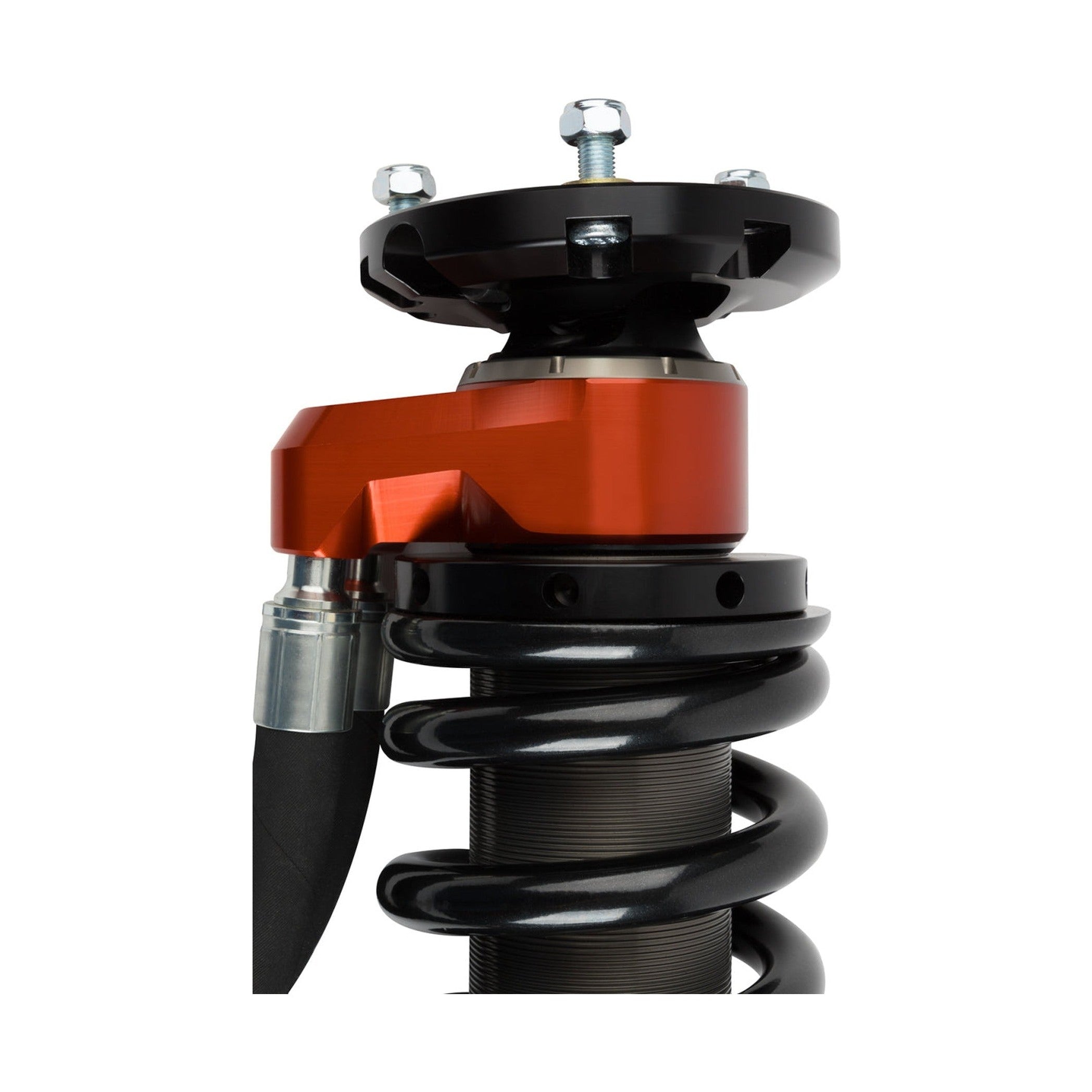

Fox 3.0 Factory Race Series Live Valve Internal Bypass Coilover Shock 2019+ Ford Raptor - Front

A Fox Factory Race Series internal bypass front shock for the 2019-2020 Ford F-150 Raptor. Its job is to keep the truck supported and controlled through the stroke when the ground gets rough, with compression adjustment you can dial for load, terrain and speed. [VERIFY: body diameter, the title says 3.0 and the product copy lists 3- and 2.5-inch aluminum bodies.]

Why Upgrade to an Internal Bypass Shock

Per FOX, here is what the internal bypass design changes:

• The feel of near-endless suspension travel. The patented internal bypass lets oil flow around the piston at some points of the stroke and builds heavy pressure at other points, so the shock stays soft where you want it and firms up where the truck needs holding up.
• Floating through terrain instead of fighting it. The ride zone pairs a race-developed shock piston with the internal bypass and Dual Speed Compression adjustment, so the shock is doing the work rather than your grip on the wheel.

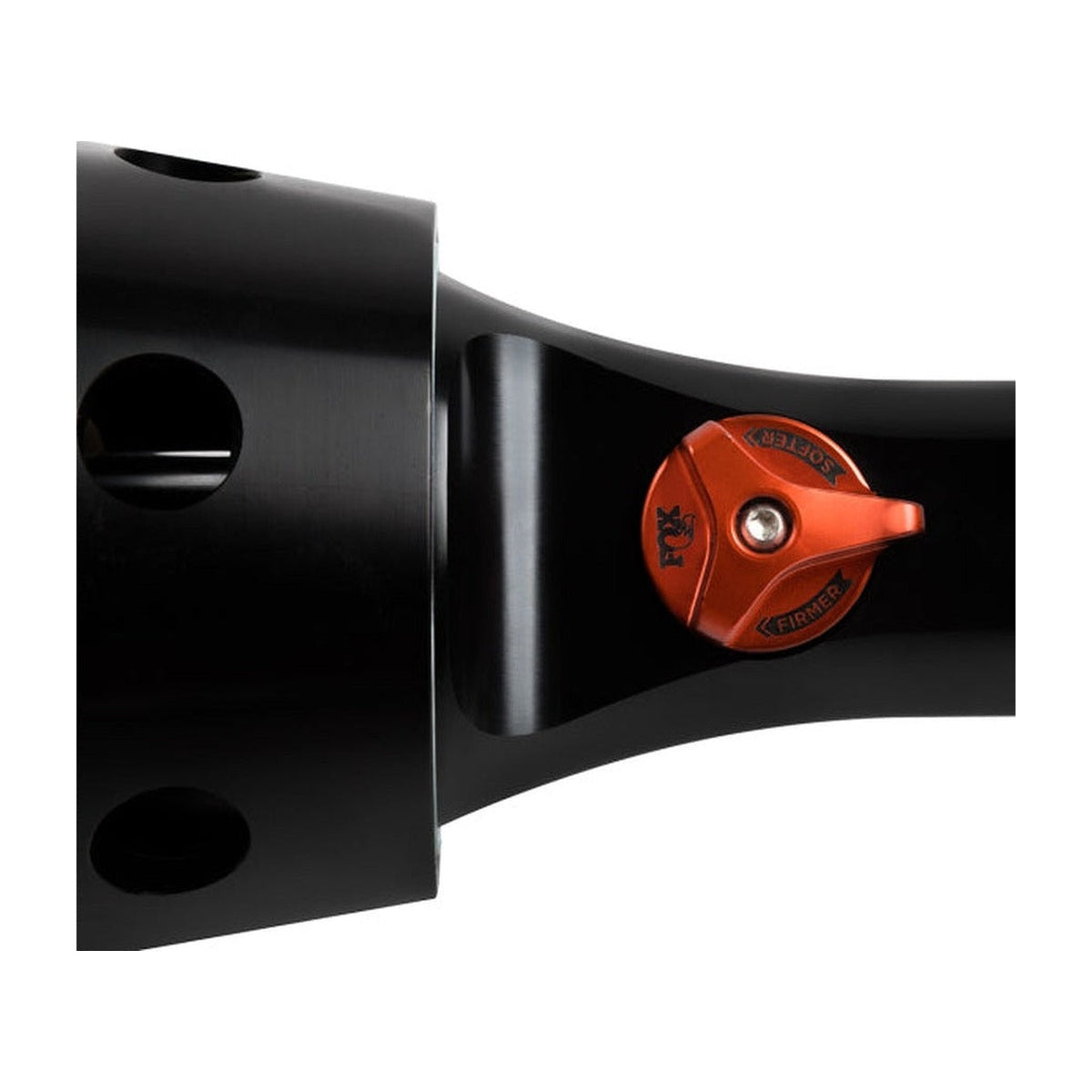

• A shock you can tune to your truck and your day. Dual Speed Compression adjustment lets you fine tune for weight, terrain and speed, so a loaded bed or a faster trail gets a different setting instead of a compromise.

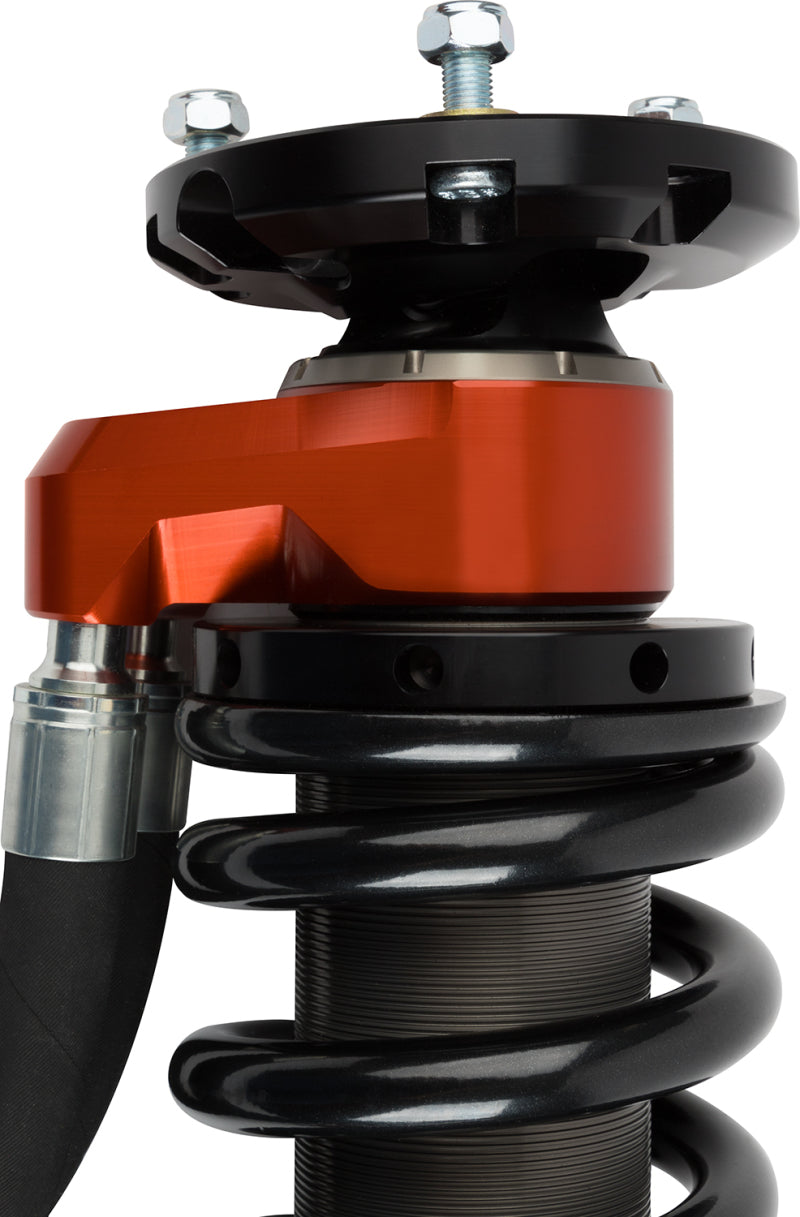

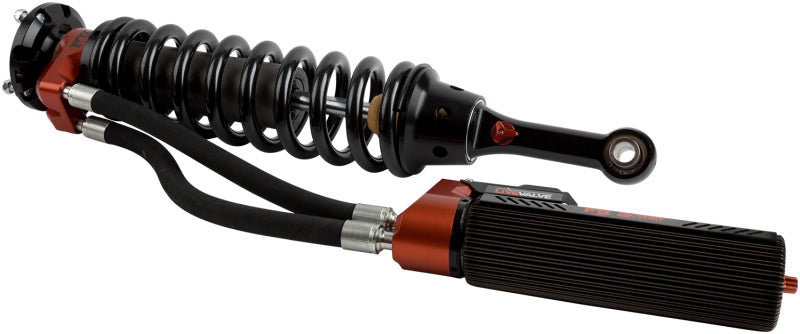

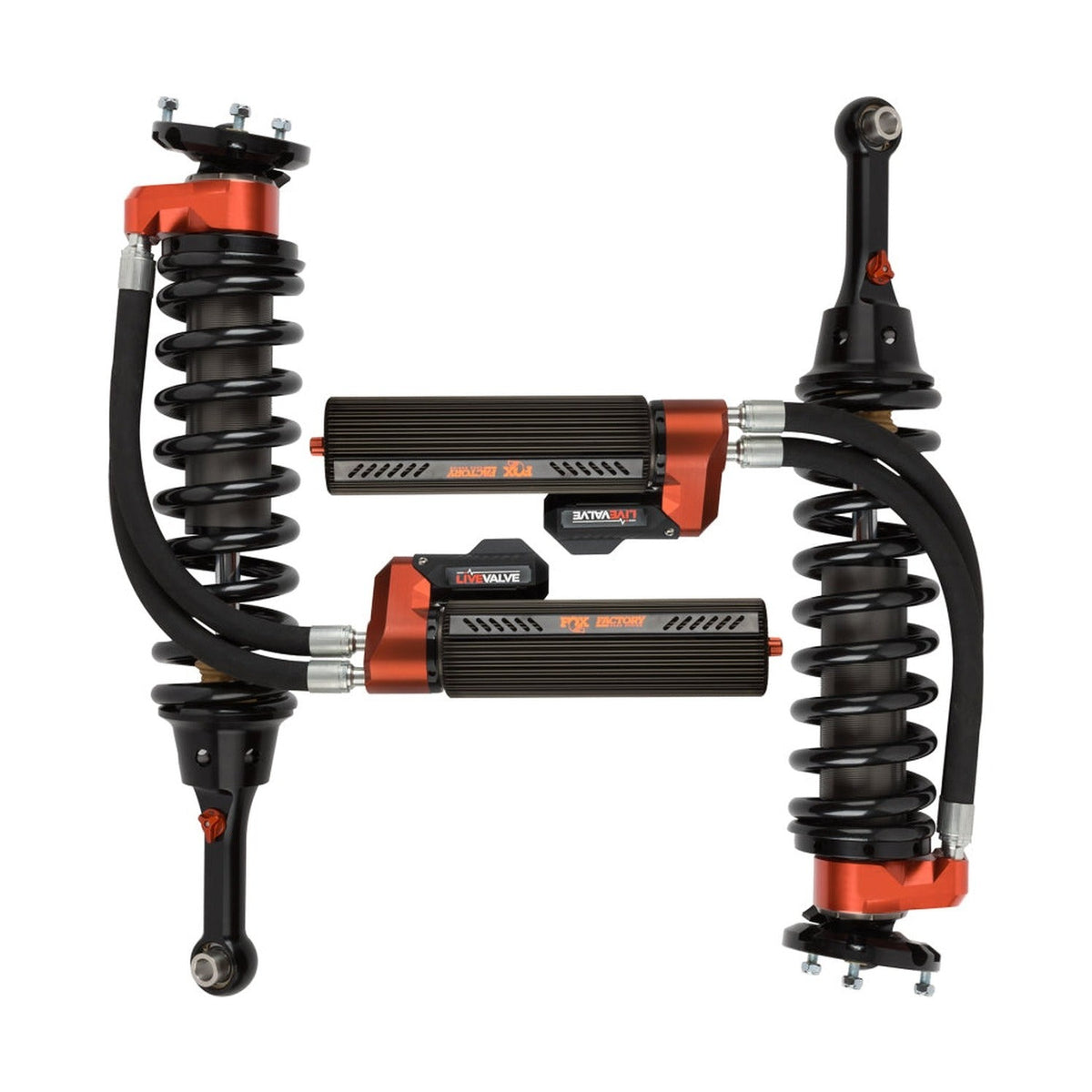

• Hardware built for abuse: aluminum bodies, cactus cooler reservoirs and 7/8 inch shafts with redundant seals, all of which the brand says were proven in the harshest environments and toughest conditions.

Fitment Notes

Fits the 2019-2020 Ford F-150 Raptor, front position. Does not fit the base F-150.

More Coilovers that fit your F-150

Install and Honest Talk

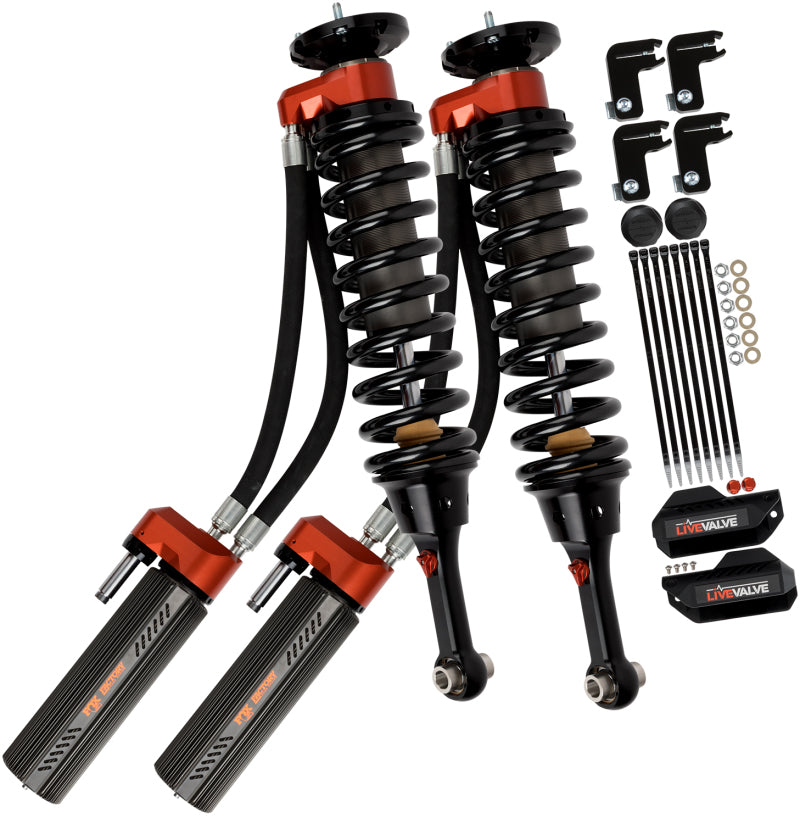

This is a race-developed off-road shock with adjustment built in, and that cuts both ways. Fine tuning for weight, terrain and speed means you get to set it up for how you actually drive, but it also means homework: expect to spend time dialing in the compression settings rather than bolting it on and forgetting it. If your Raptor lives on pavement, you are paying for terrain capability you will rarely feel. Note the reservoir on this design and plan for where it lives on the truck. What else you need: [VERIFY: supporting parts, hardware in the box, spring and coilover assembly, studs and bolts, torque specs, clearance, reservoir mounting, install steps, tune requirement.] Check the included instructions for what comes off the truck, what tools or a lift are called for, and whether any extra hardware is required before you start.

Specs

• Brand: FOX
• Part number: 883-06-153
• Part type: Coilovers
• Position: Front
• Quantity: [VERIFY: sold as one shock or a pair]
• Body material: Aluminum
• Shaft: 7/8 inch with redundant seals

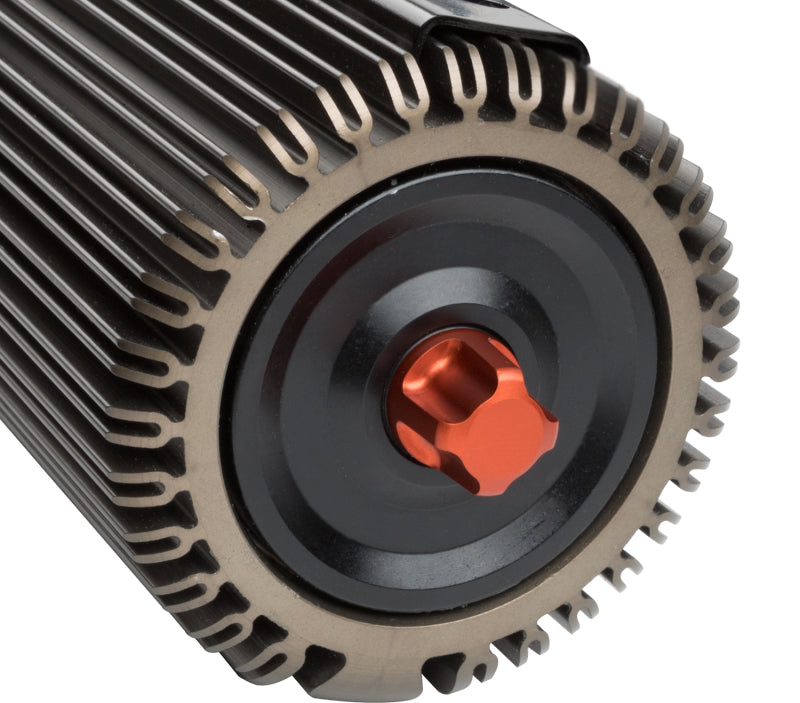

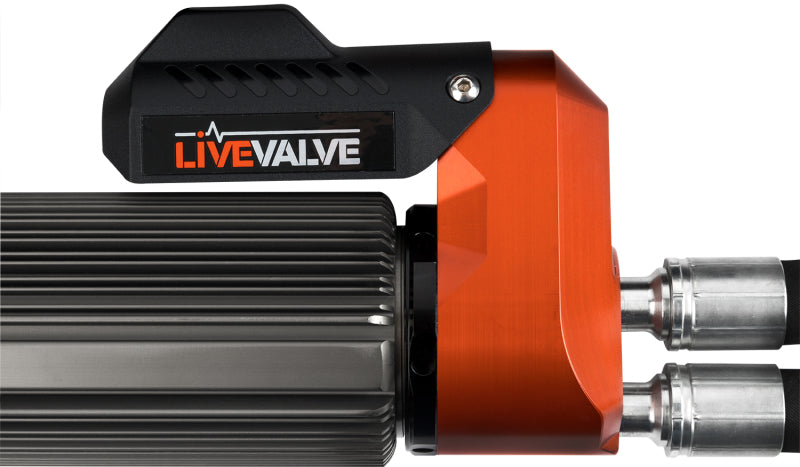

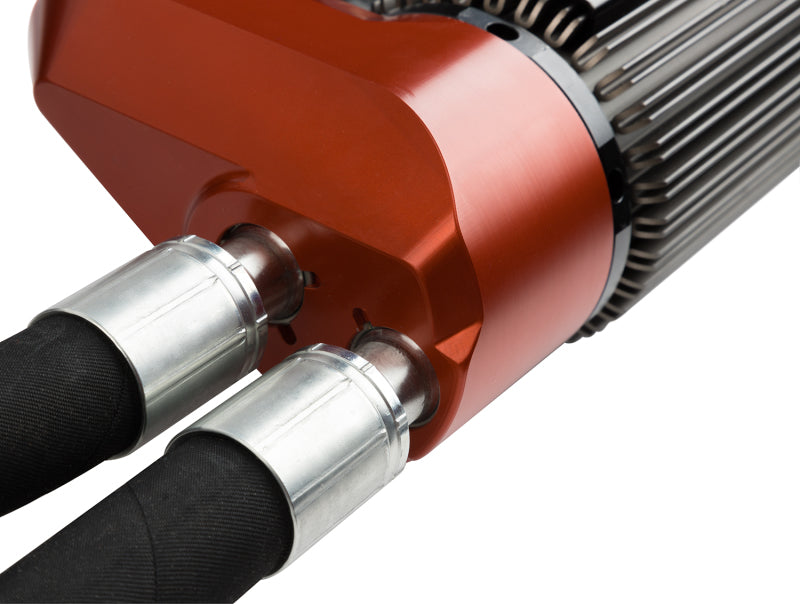

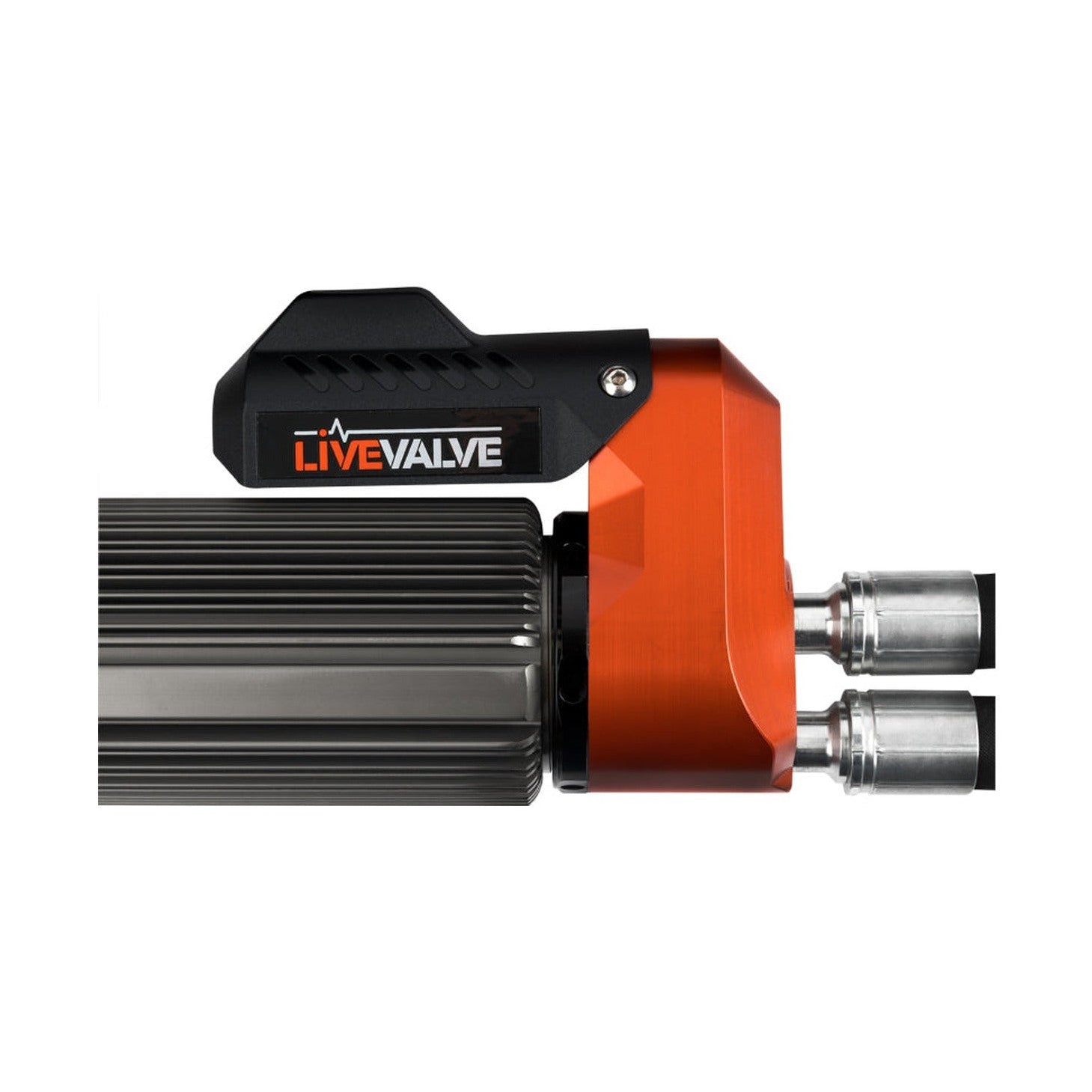

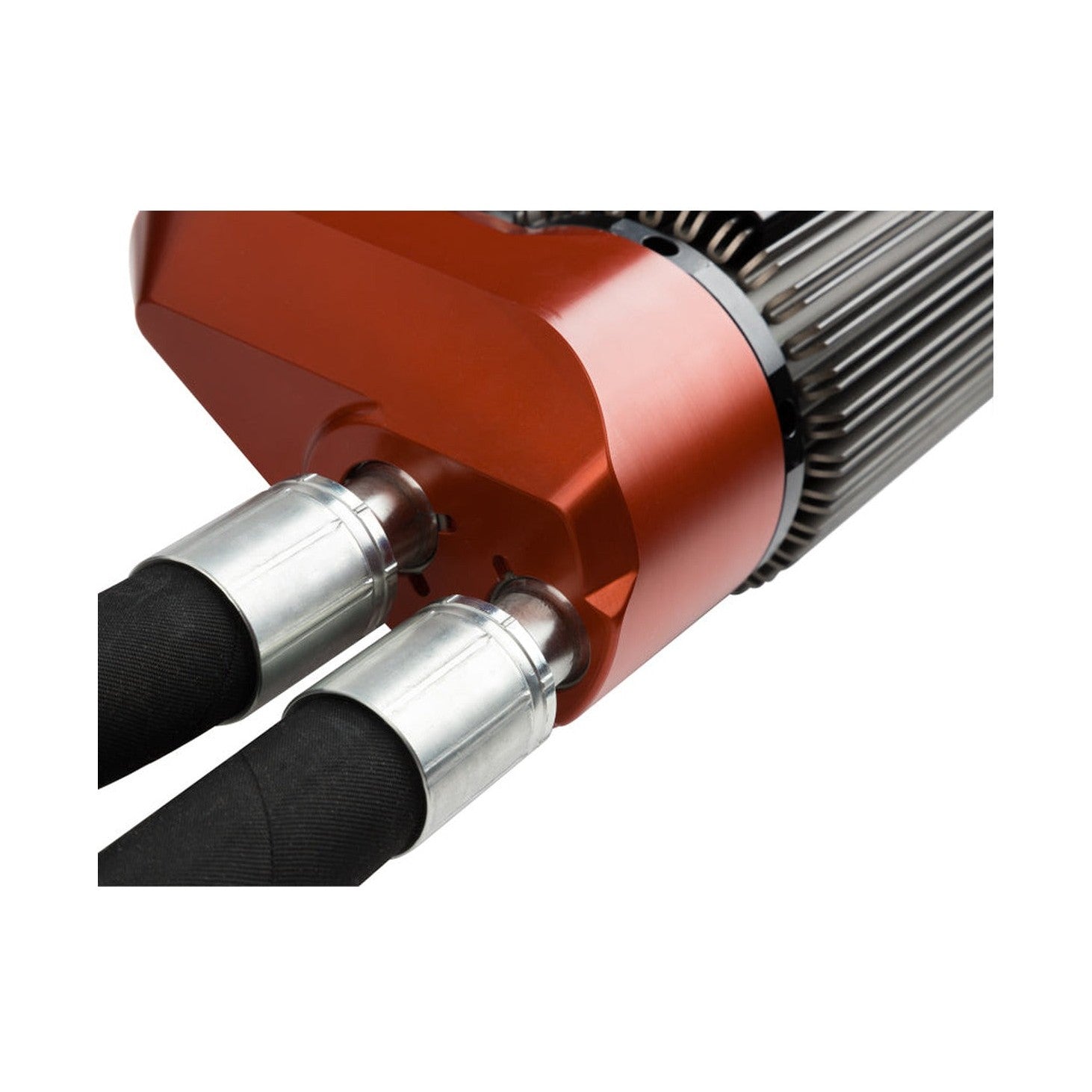

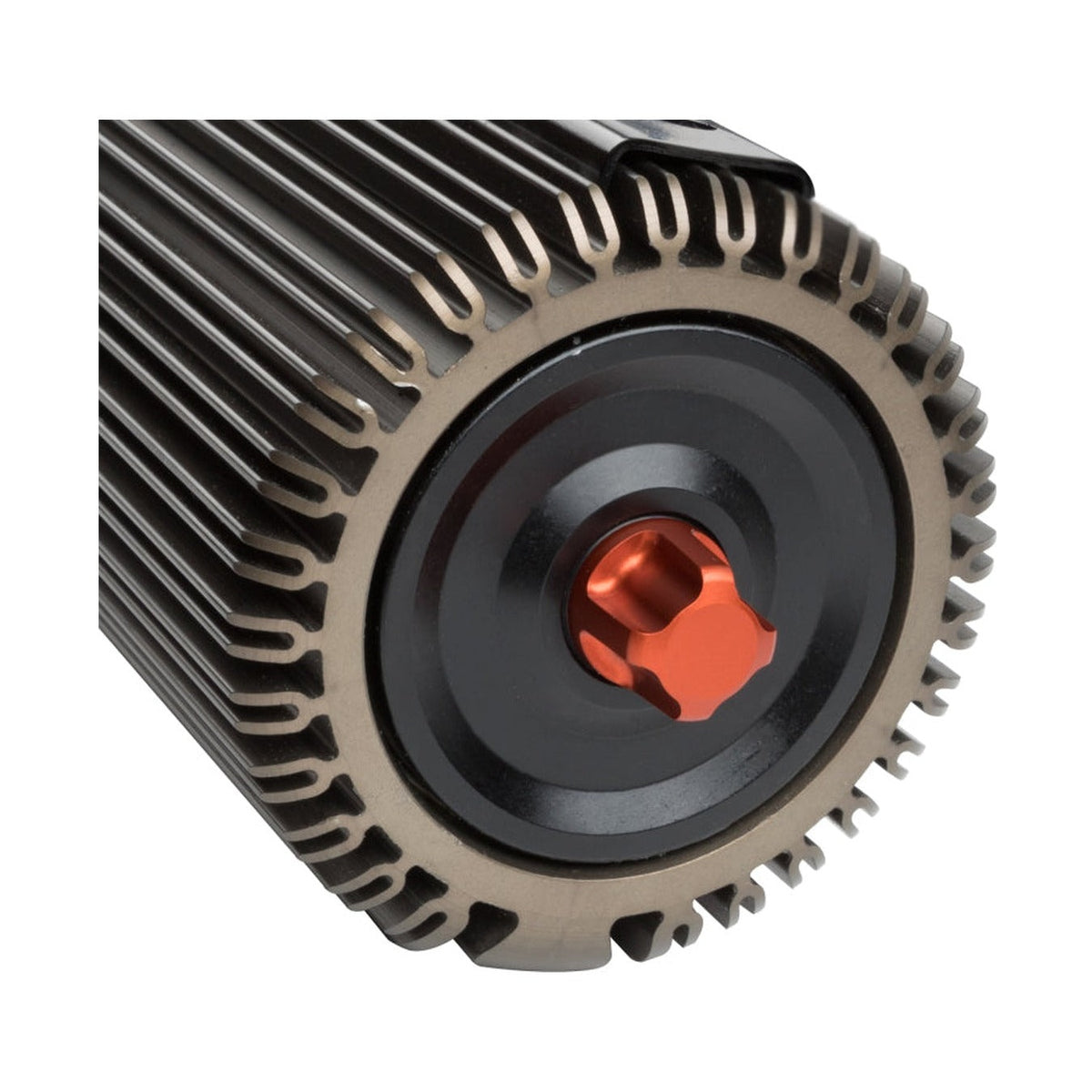

• Reservoir: Cactus cooler reservoir

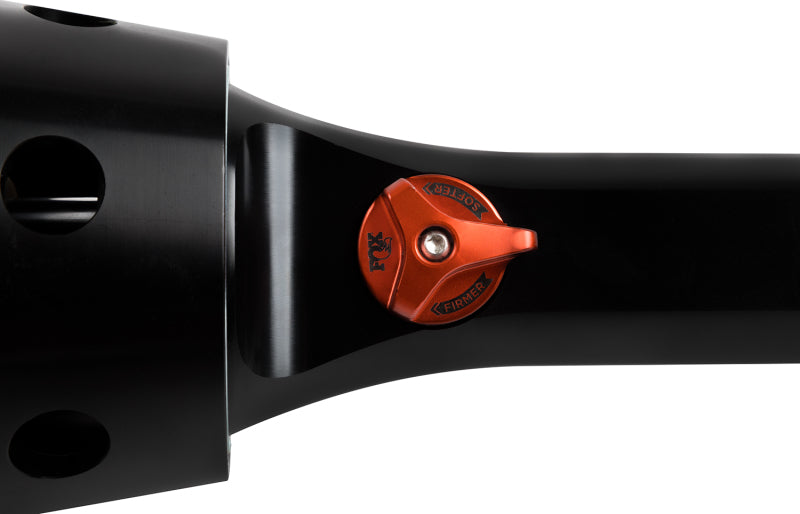

• Adjustment: Dual Speed Compression
• Design: Internal bypass, ride zone with race-developed shock piston
