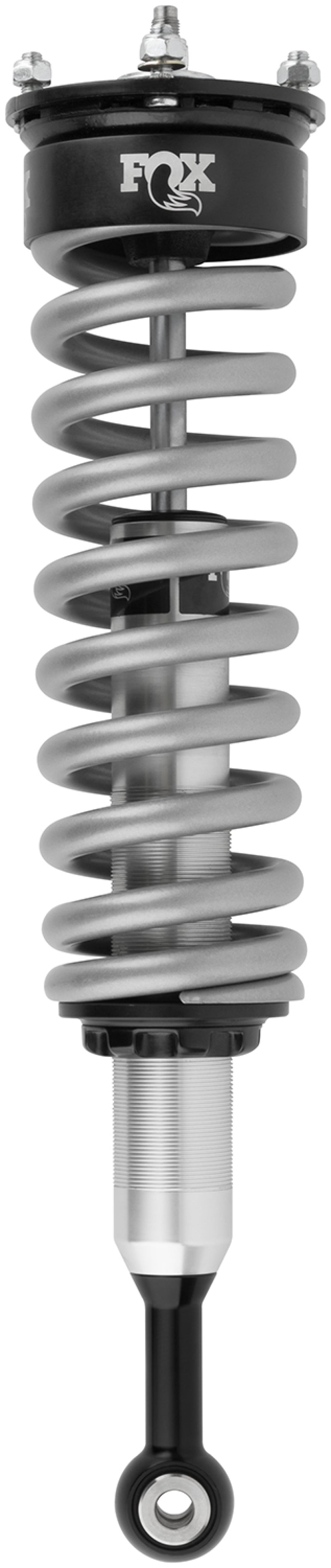

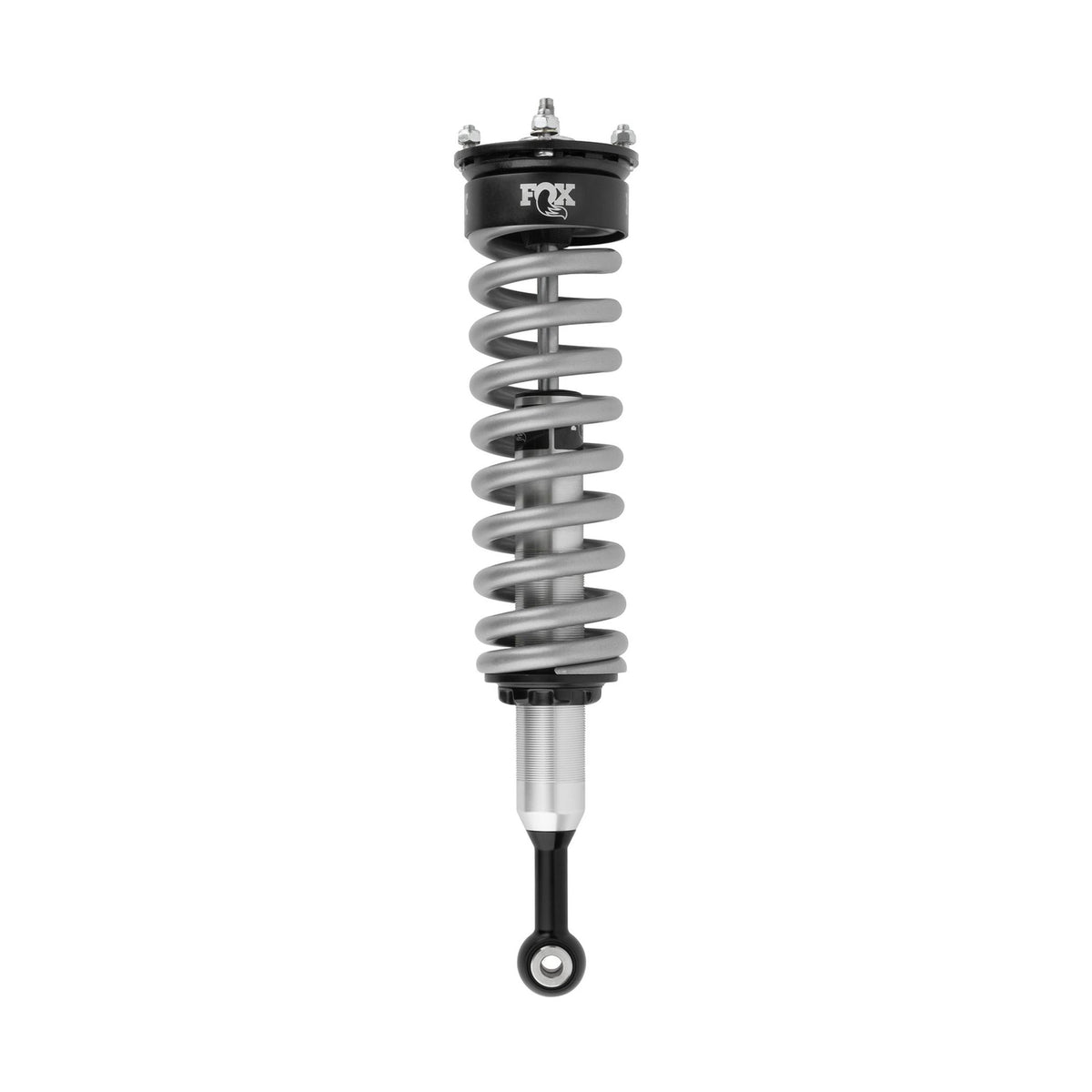

2009-2013 Ford F-150 FOX 2WD 2.0 Performance Series 4.925-Inch. IFP Coilover Shock (Alum)/0-2-Inch Lift

This listing covers the exact FOX coilovers configuration identified as Ford F-150 FOX 2WD 2.0 Performance Series 4.925-Inch. IFP Coilover Shock (Alum)/0-2-Inch Lift.

Catalog fitment covers the listed 2009-2013 Ford F-150 applications. Exact year and submodel combinations appear in the fitment table below; compatibility must not be inferred for every trim across the full range.

Manufacturer-supplied details include More drop-out travel in most applications, so the wheel can follow the ground when the trail falls away instead of hanging in the air; Performance-minded valving tuned for this truck. On pavement that reads as a connected ride with less body sway through the corners; Aluminum bodies that shed heat four times better than conventional materials, which is what keeps the damping consistent and fade resistant on a long rough stretch; A true internal floating piston keeps the gas and oil separated, backing up that consistent feel instead of letting the shock go soft as it works; Fully serviceable and built to resist corrosion and harsh environments, so a tired shock can be rebuilt down the road rather than tossed.

Fox does not spell out the install in the copy we have, so here is what is known and what is not. It is a coilover for the 2WD truck, built for 0 to 2 inches of lift, and it is fully serviceable. What comes off the truck, whether the factory spring or any hardware is reused, and whether you need a lift or a spring compressor to do the job safely are not stated: check the included instructions before the truck goes up on stands. Setting ride height is also a decision you make once and live with, so pick the height before you start.

The honest part. Connected means connected. Valving built to cut sway is valving that tells you what the road is doing, so expect to feel more of it than a plush setup would let through. Serviceable is a real plus, and it also means this is a shock you maintain, not one you forget about.

Listed specifications include Part type: Coilovers; Series: 2.0 Performance Series; Listed size: 4.925 in. (as listed in the title); Lift: 0-2 in; Drivetrain: 2WD; Body material: Aluminum; Piston: Race-developed main piston with a true internal floating piston (IFP) separating gas and oil; Serviceable: Fully serviceable, per Fox.

Use manufacturer part number 983-02-052 to identify this exact FOX configuration. Match the full part number, vehicle application, position, dimensions, material, finish, and included components before ordering.
